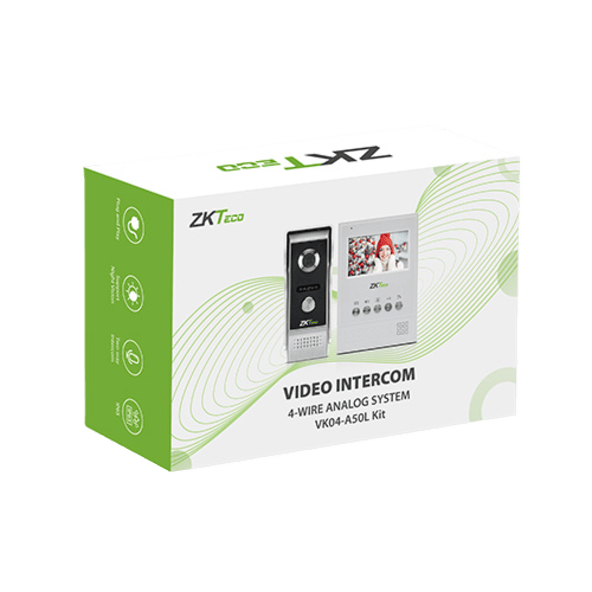

VK04-A50L Kit – Affordable Analog Video Intercom System

1. Overview

🟢 4.3-Inch TFT Display Monitor for Clear Video Communication
🟢 Full-Metal Outdoor Station with IP65 Protection Rating
🟢 High-Quality 1MP Camera with 80° Viewing Angle
🟢 Easy Installation with Included Accessories & Mounting Brackets
🟢 Ideal for Home & Office Security

2. Outdoor Station Specifications

🟢 Operating System: Linux
🟢 Camera: 1MP
🟢 Viewing Angle: 80°
🟢 Night Visibility Range: 0.2 ~ 1.5m
🟢 Casing Material: Aluminium Alloy
🟢 Power Supply: Powered by Indoor Monitor
🟢 Audio Input: Omni-Directional Microphone
🟢 Audio Output: Built-in Speaker
🟢 Bi-Directional Talk: Supported
🟢 Ingress Protection Rating: IP65
🟢 Operating Temperature: -30°C to 60°C
🟢 Operating Humidity: 10% to 90% RH (Non-Condensing)
🟢 Installation Method: Flush Mount (with Rain Cover) on Flat Surface
🟢 Dimensions (H×W×D): 125 × 52 × 45 mm

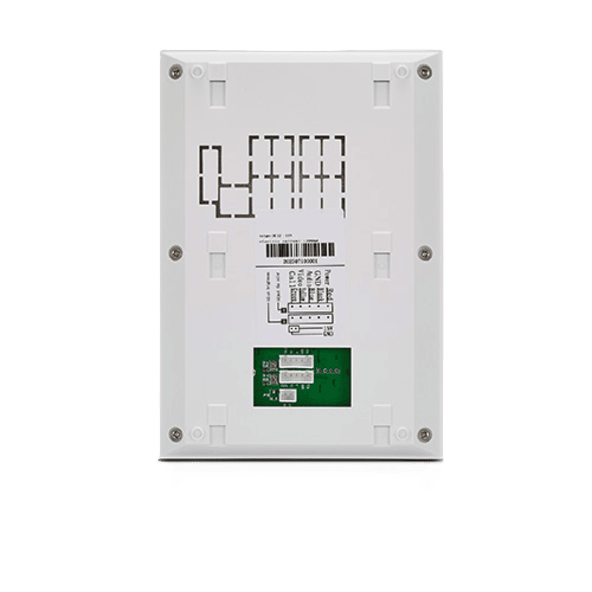

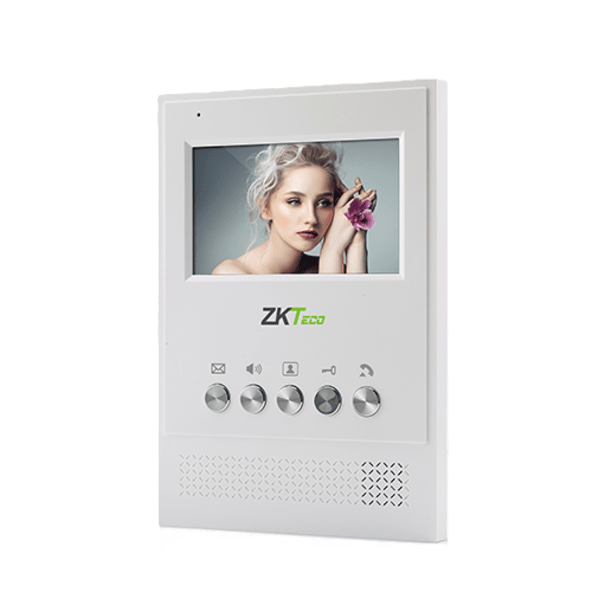

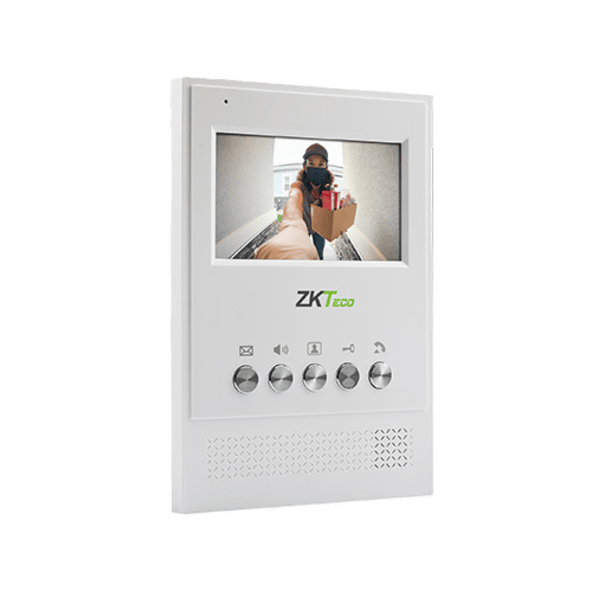

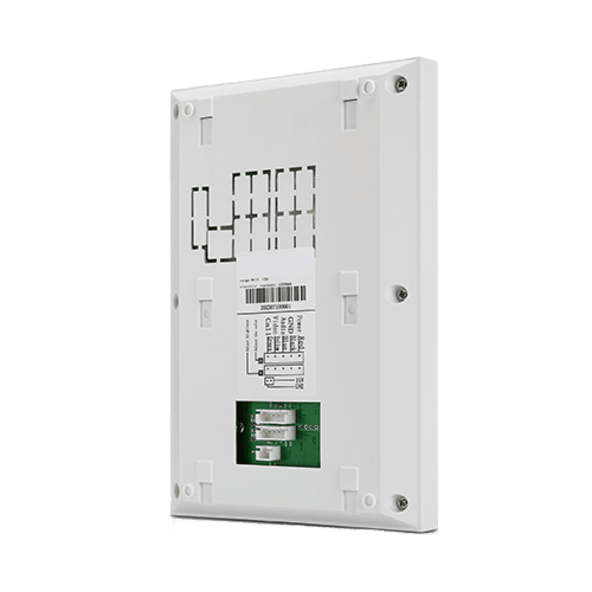

3. Indoor Monitor Specifications

🟢 Operating System: Linux
🟢 Resolution: 480 × 282
🟢 Display: 4.3-Inch TFT-LCD Screen
🟢 Speaker: Dual Speakers (8Ω / 2W)
🟢 Wiring: RVV 4/5 Wire
🟢 Standby Power Consumption: ≤ 1W
🟢 Operating Power Consumption: ≤ 10W
🟢 Maximum Use Distance: ≤ 100M
🟢 Installation Method: Wall Mount
🟢 Material: ABS Plastic
🟢 Dimensions (W×H×D): 180 × 130 × 22 mm

Why Choose VK04-A50L Kit?

🟢 Affordable & Reliable Analog Video Intercom Solution
🟢 Crystal-Clear Audio & Video Communication
🟢 Durable Outdoor Station with IP65 Weatherproof Protection
🟢 Easy Installation with All Necessary Accessories Included
🟢 Ideal for Residential & Small Business Security Needs

📞 Contact us today to see how VK04-A50L Kit can enhance your security! 🚀
