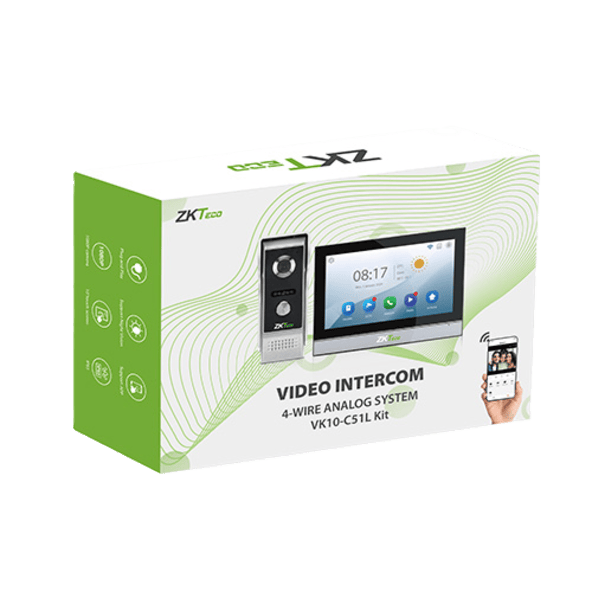

VK10-C51L Kit – Advanced Video Intercom System for Villas

1. Overview

🟢 Comprehensive 4-Wire Analog Video Intercom System for Secure & Smart Living
🟢 Includes One Indoor Monitor, One Outdoor Station & Installation Accessories
🟢 1080P Camera with 120° Wide Viewing Angle & Night Vision (Up to 3m)
🟢 Supports Real-Time Two-Way Communication & Remote Door Unlocking
🟢 ZSmart App Integration for Remote Access & Control
🟢 Ideal for Villas, Apartments & Private Residences

2. Outdoor Station Specifications

🟢 Operating System: Linux
🟢 Video Compression: H.264
🟢 Camera Resolution: 1080P (2MP)
🟢 Viewing Angle: 120°
🟢 Night Vision Range: 0.2 ~ 3m
🟢 Motion Detection: Supported
🟢 Audio Input: Omni-Directional Microphone
🟢 Audio Output: Built-in Speaker
🟢 Bi-Directional Talk: Supported
🟢 Ingress Protection Rating: IP65 (Water & Dust Resistant)
🟢 Power Supply: Powered by Indoor Monitor
🟢 Operating Temperature: -30°C to 60°C
🟢 Operating Humidity: 10% – 90% RH (Non-Condensing)
🟢 Casing Material: Aluminium Alloy + ABS Plastic
🟢 Installation Method: Flush Mount (with Rain Cover) on Flat Surface
🟢 Dimensions (H×W×D): 125 × 52 × 45 mm

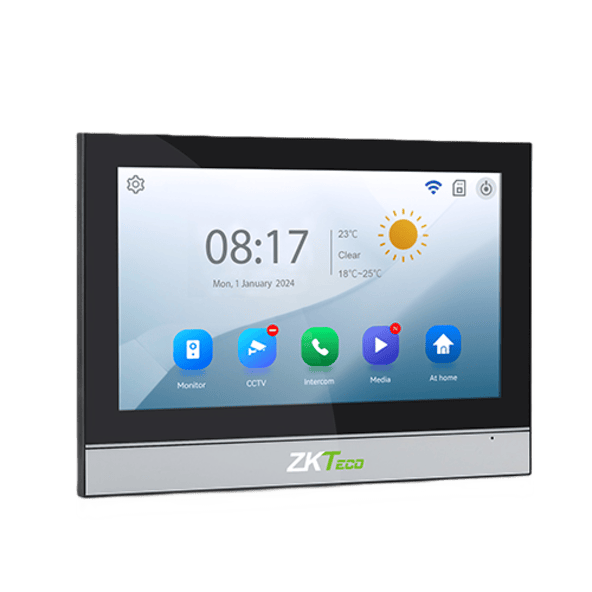

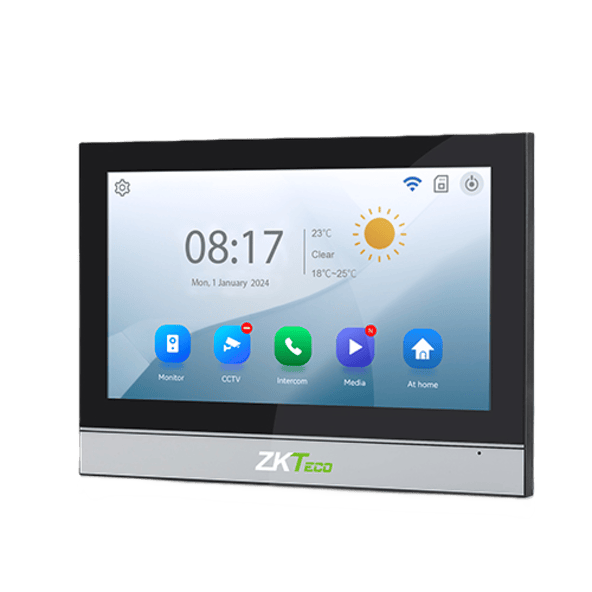

3. Indoor Monitor Specifications

🟢 Operating System: Linux
🟢 Resolution: 1024 × 600
🟢 Display: 10-Inch Touch Screen
🟢 Power Supply: DC 15V 1.2A
🟢 Standby Power Consumption: ≤3W
🟢 Operating Power Consumption: ≤10W
🟢 Maximum Use Distance: ≤100M
🟢 Supported Languages: Chinese, English, German, French, Russian, Spanish, Arabic, Portuguese
🟢 Storage Expansion: TF Card (Max 128GB)
🟢 Wi-Fi Support: IEEE 802.11 a/b/g @ 2.4GHz
🟢 Material: Tempered Glass Panel + ABS Plastic
🟢 Mobile App Compatibility: ZSmart
🟢 Installation Method: Wall Mount
🟢 Dimensions (W×H×D): 260 × 186 × 25 mm

4. Key Features

🟢 Real-Time Video & Two-Way Communication with Visitors
🟢 Remote Unlocking & Access Control via ZSmart App
🟢 Motion Detection & Night Vision for Enhanced Security
🟢 Weatherproof IP65-Rated Outdoor Station for Reliable Operation
🟢 10” High-Resolution Touchscreen Indoor Monitor
🟢 Expandable Storage Up to 128GB for Video Recording & Playback

Why Choose VK10-C51L Kit?

🟢 Smart Home Integration with ZSmart App
🟢 Large 10” Touchscreen Display for Enhanced Visibility & Control
🟢 High-Resolution 1080P Camera with Wide 120° Viewing Angle
🟢 Durable Outdoor Station for All Weather Conditions
🟢 Secure & Convenient Video Intercom for Homes & Villas

📞 Contact us today to see how VK10-C51L Kit can enhance your home security! 🚀
