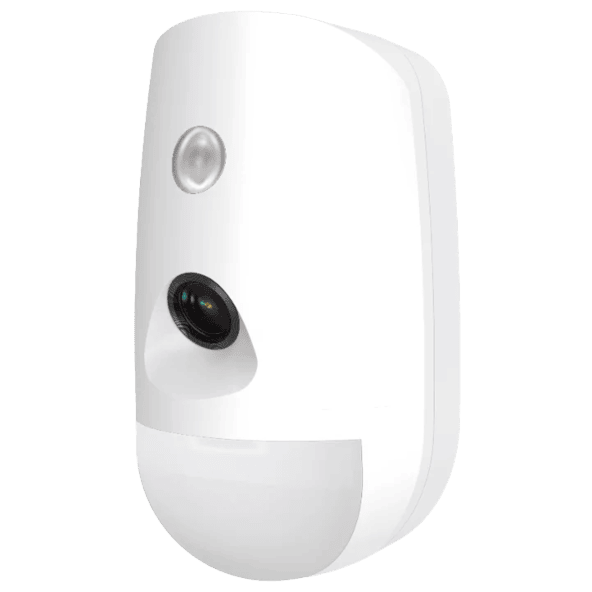

Wireless PIR-Camera Detector – Advanced Motion & Video Security

1. Overview

🟢 12m detection range with 85.9° coverage
🟢 Up to 30KG pet immunity to reduce false alarms
🟢 SEC (Smart Environmental Control) – Advanced digital signal processing & 3D optics
🟢 24/7 colorful imaging for enhanced security
🟢 Large integrated memory buffer for image storage
🟢 Fully remote configurable through mobile App
🟢 Multiple enrollment methods & easy installation design
🟢 Easy battery replacement with PCB protection

2. Detection Performance

🟢 Detection Range: 12m
🟢 Detection Angle: 90°
🟢 Detection Zones: 52 zones
🟢 Detectable Speed: 0.3～2m/s
🟢 Sensitivity Levels: High, Auto, Pet Mode
🟢 Pet Immunity: Up to 30kg
🟢 White Light Filter: 6500 lux
🟢 Digital Temperature Compensation: Supported
🟢 Creep Zone Protection: Supported

3. Intelligent Features

🟢 Digital Signal Processing: For enhanced motion detection accuracy
🟢 Sealed Optics: Protection against dust & interference
🟢 Tamper Protection: Front & rear protection
🟢 Environment Temperature Indicator: Supported
🟢 Signal Strength Indicator: Supported

4. Video & Imaging

🟢 Field Angle: 88.4° (Horizontal), 54.0° (Vertical)
🟢 Image Format: JPEG
🟢 Resolution Options: 160×120, 320×240, 640×480
🟢 Fill Light Type: White Light
🟢 Fill Light Range: 12m
🟢 Day/Night Mode: Full-Color Imaging

5. Transmission & Connectivity

🟢 Transmission Technology: CAM-X Wireless
🟢 Transmission Method: Two-Way RF Wireless
🟢 Transmission Frequency: 433MHz
🟢 Transmission Security: AES-128 Encryption
🟢 Transmission Range (Free Space): Up to 800m
🟢 Enrolling Methods: Power-up, Remote ID, QR Code

6. Power & Battery

🟢 Battery Life: Up to 6 years (standby time)
🟢 Power Supply: Battery-powered
🟢 Battery Type: CR123A × 3
🟢 Typical Voltage: 3V

7. Environmental Conditions

🟢 Operating Temperature: -10°C to 55°C
🟢 Storage Temperature: -20°C to 60°C
🟢 Operating Humidity: 10% to 90%

8. Dimensions & Installation

🟢 Compact Size: 72.2 × 120.5 × 56.7 mm
🟢 Weight: 220g
🟢 Mounting Height: 1.8 to 2.4m
🟢 Mounting Method: Wall-mounted
🟢 Application Scenario: Indoor
🟢 Bracket: Optional wall & ceiling accessory

Why Choose Wireless PIR-Camera Detector?

✅ Advanced dual-detection for motion & video security
✅ 24/7 colorful imaging for enhanced surveillance
✅ Reliable wireless transmission with AES-128 encryption
✅ Pet immunity to minimize false alarms
✅ Long battery life for hassle-free operation
