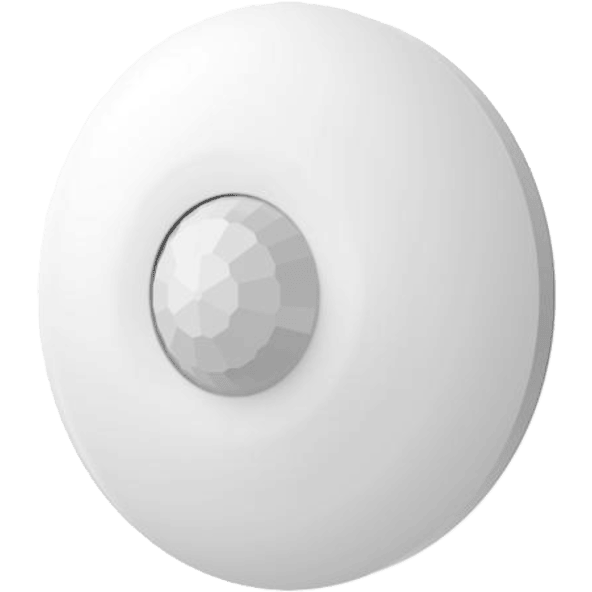

Wireless PIR Ceiling Detector – 360° Motion Detection

1. Overview

🟢 12m / 360° detection range for full coverage
🟢 SEC (Smart Environmental Control) for advanced signal processing
🟢 Fully remote configurable through mobile App
🟢 Multiple enrollment methods for easy installation
🟢 Easy battery replacement with PCB protection
🟢 Frequency hopping technology for anti-jamming reliability

2. Detection Performance

🟢 Detection Method: Passive Infrared
🟢 Detection Range: 12m / 360°
🟢 Detection Zones: 172
🟢 Detectable Speed: 0.3 – 2m/s
🟢 Sensitivity Levels: Auto; Low
🟢 White Light Filter: 6500 lux
🟢 Digital Temperature Compensation: Supported
🟢 Creep Zone Protection: Supported

3. Advanced Features

🟢 Digital Processing: Supported
🟢 Sealed Optics: Supported
🟢 Tamper Protection: Front & Rear
🟢 Environment Temperature Indicator: Supported
🟢 Signal Strength Indicator: Supported

4. Transmission & Security

🟢 Transmission Technology: Tri-X Wireless
🟢 Transmission Method: Two-Way RF Wireless
🟢 Frequency: 433MHz
🟢 Transmission Security: AES-128 Encryption
🟢 Transmission Range (Free Space): Up to 1km
🟢 Frequency Hopping: Supported
🟢 Enrollment Methods: Power Up, Remote ID, QR Code

5. Power & Battery

🟢 Battery Life: Up to 5 years (standby time)
🟢 Power Supply: Battery-Powered
🟢 Battery Type: CR123A × 1
🟢 Typical Voltage: 3V

6. Environmental Conditions

🟢 Operating Temperature: -10°C to 55°C (14°F to 131°F)
🟢 Storage Temperature: -20°C to 60°C (-4°F to 140°F)
🟢 Operating Humidity: 10% to 90%

7. Dimensions & Installation

🟢 Size: φ101.2mm × 32.9mm
🟢 Weight: 109.5g
🟢 Mounting Height: 2.4 – 4m
🟢 Mounting Method: Ceiling
🟢 Application Scenario: Indoor

Why Choose Wireless PIR Ceiling Detector?

✅ 360° motion detection for complete coverage
✅ Reliable anti-jamming transmission with AES-128 encryption
✅ Remote configuration & monitoring via mobile App
✅ Long battery life & low maintenance operation
✅ Ideal for high-ceiling installations
