F 22

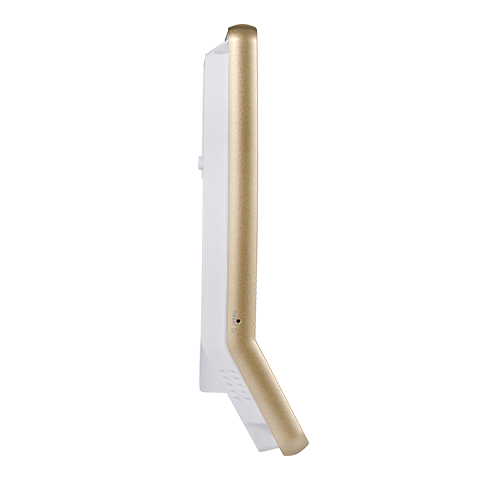

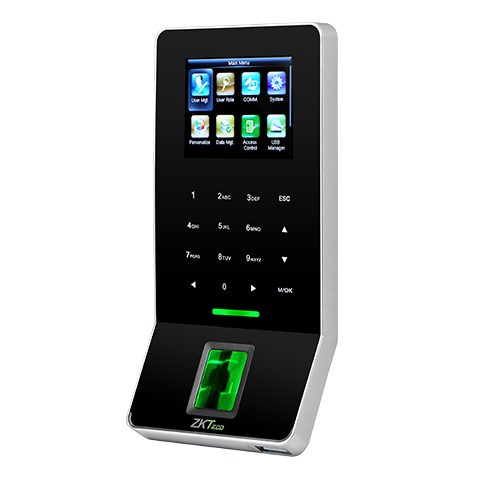

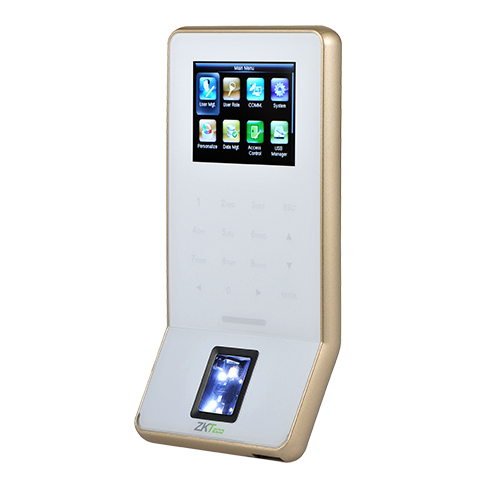

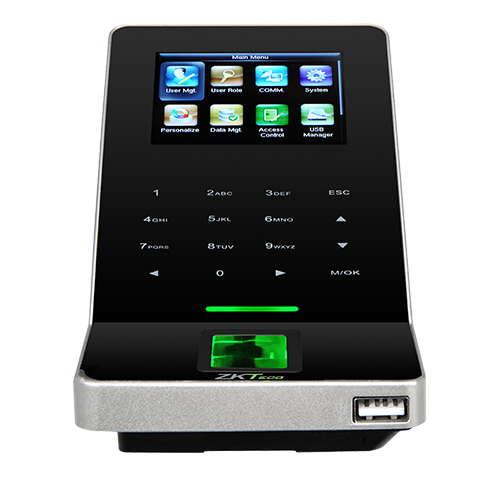

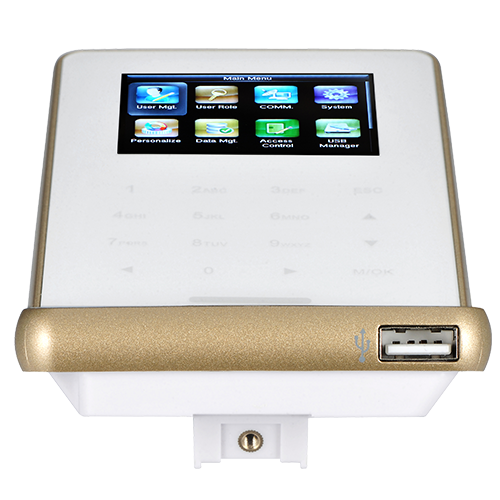

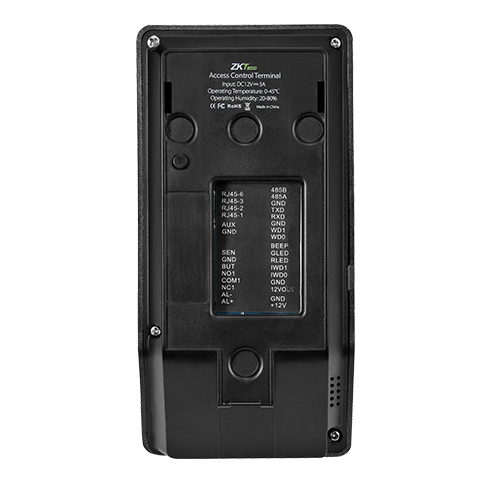

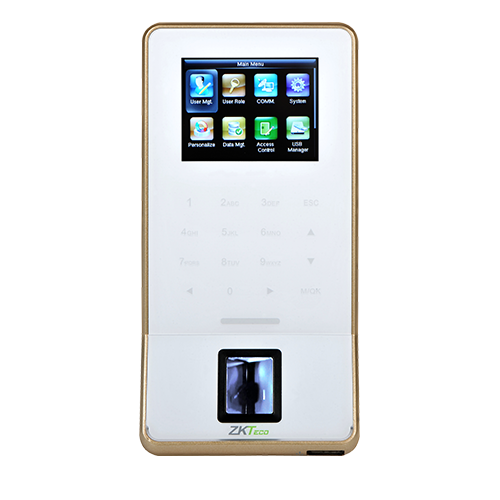

F22 – Ultra-Thin Fingerprint Time Attendance & Access Control Terminal
1. Key Features
🟢 Ultra-Thin & Sleek Design – Compact fingerprint time attendance and access control terminal with Wi-Fi
🟢 High-Performance Fingerprint Sensor – Infrared detection for superior accuracy and fast matching
🟢 Multiple Authentication Options – Supports fingerprint, RFID card (optional), and password
🟢 Flexible Communication – TCP/IP, Wi-Fi, RS232, RS485, USB-host for seamless integration
🟢 Standalone & Third-Party Compatibility – Supports Wiegand input/output for integration with external access control panels
🟢 Touch Keypad & Color Display – 2.4-inch TFT LCD for an enhanced user experience
2. Authentication & Storage Capacity
🟢 Fingerprint Capacity: 3,000 (Optional)
🟢 Card Capacity: 5,000 (Optional ID or MIFARE card support)
🟢 Transaction Logs: 30,000
3. Communication & Connectivity
🟢 Network & Data Transfer:
- TCP/IP for network communication
- Wi-Fi for wireless access
- USB-Host for local data transfer
- RS232, RS485 for external device connection
4. Access Control & Security
🟢 Supports Integration With:
- 3rd Party Electric Locks
- Door Sensors
- Exit Buttons
- Alarms
- Wiegand Input & Output for external control panels
🟢 Auxiliary Input: 1 input for linkage function
5. Advanced Functions
🟢 DST (Daylight Saving Time) Support
🟢 Automatic Status Switch (Optional)
🟢 Record Query for Attendance Logs
🟢 T9 Input for Quick Data Entry
🟢 14-Digit User ID Support (Optional)
🟢 Anti-Passback for Enhanced Security
🟢 Scheduled Bell Alerts
🟢 Printer Support (Optional)
🟢 ADMS for Cloud-Based Data Management
6. Display & User Interface
🟢 2.4-inch TFT LCD Color Screen
🟢 Capacitive Touch Keypad for a superior user experience
7. Environmental Conditions
🟢 Operating Temperature: 0°C to 45°C
🟢 Operating Humidity: 20% to 80%
8. Power & Dimensions
🟢 Power Supply: 12V DC, 3A
🟢 Dimensions: 158.5 × 78.0 × 19.4mm (L × W × H)
9. SDK & Software Compatibility
🟢 Standalone SDK for custom development
🟢 Compatible with ZKBio Access IVS for centralized access control management
Why Choose the F22?
✅ Ultra-Thin & Modern Design – Ideal for sleek, modern installations
✅ Fast & Accurate Fingerprint Recognition – High-performance sensor ensures reliable authentication
✅ Flexible Communication – Wi-Fi, TCP/IP, RS232, RS485, USB-host for easy integration
✅ Advanced Access Control Functions – Supports locks, alarms, exit buttons, and sensors
✅ Cloud-Ready & Software Integration – Compatible with ZKBio Access IVS
📞 Contact us today for more details!
