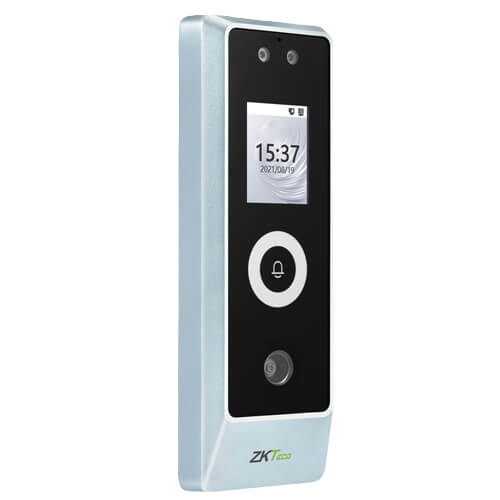

ProMA Series – High-End Outdoor Multi-Biometric Access Control Terminal

1. Key Features

🟢 Ultra-Robust Design – Heavy-duty aluminum alloy casing with IP66 water & dust proof and IK07 vandal-proof rating
🟢 Multi-Biometric Authentication – Supports Face, Fingerprint, RFID & Palm Recognition
🟢 High-Capacity Storage – Up to 30,000 facial templates, 10,000 fingerprints, 5,000 palm templates, and 50,000 RFID cards
🟢 Lightning-Fast Recognition – Facial recognition in ≤ 0.3 sec, Palm recognition in 0.35 sec, RFID in 0.2 sec
🟢 Advanced Security & Integration – ZKTeco PUSH communication protocol, ONVIF video surveillance integration, and ZKBio CVSecurity software compatibility

2. User & Storage Capacity

🟢 Fingerprint: 10,000 (Only ProMA)
🟢 Face: 30,000 (Optional: 50,000 for ProMA-QR & ProMA-RF)
🟢 Palm: 5,000 (Customized feature)
🟢 Cards: 50,000 (Optional: 100,000 for ProMA-QR & ProMA-RF)
🟢 Transactions: 500,000

3. Performance & Technology

🟢 Processor: 1.0GHz Quad-Core CPU
🟢 Memory: 1GB RAM / 8GB Flash
🟢 Display: 2.0” Color TFT Monitor
🟢 QR Code Sensor: (Only on ProMA-QR, supports PDF417, Data Matrix, MicroPDF417, Aztec)
🟢 Hi-Fi Voice & Indicator Alerts
🟢 Tamper Switch Alarm

4. Communication & Security

🟢 Network & Encryption:

• 1 × TCP/IP (TLS1.2, AES-256 secure communication channel)
• 1 × RS485 (OSDP V2.1.7, AES-128 secured channel)
• 1 × Wiegand Input/Output

🟢 Standard Functions:

• On-board Web Server
• Access Levels, Groups & Holidays
• Anti-Passback & Record Query
• 14-digit User ID, Duress Mode, Tamper Alarm

5. Access Control & Integration

🟢 Interfaces:

• 1 × Lock Relay Output
• 1 × Alarm Output / Auxiliary Input
• 1 × Exit Button / Door Sensor
• 1 × Doorbell Output

🟢 Compatibility:

• Security Relay Box: DM10
• Wiegand/ OSDP/ RS485 Slave Readers
• Software: ZKBio CVSecurity
• Mobile App: ZSmart
• SIP Protocol: VT07-B01

6. Special Features

🟢 Extreme Durability: IP66 (Waterproof & Dustproof), IK07 (Vandal-Resistant)
🟢 High-Speed Recognition:

• Facial Recognition: ≤ 0.3s
• Palm Recognition: 0.35s
• RFID Recognition: 0.2s
  🟢 Cybersecurity Ready: Fully compliant with ZKTeco Cyber Security Base Line (ZKCSBL)
  🟢 Video Intercom Support
  🟢 ONVIF Protocol Compatibility: Supports multiple profiles (S, T, G, C, Q, A)

7. Environmental Conditions

🟢 Operating Temperature: -26°C to 55°C (-14.8°F to 131°F)
🟢 Operating Humidity: ≤93% RH
🟢 Storage Temperature: -30°C to 65°C (-22°F to 149°F)

8. RFID Module Options

🟢 ID: EM05
🟢 IC: IC08
🟢 ID & IC: B133
🟢 HID Prox / HID iClass: MTR30
🟢 BLE / NFC (Coming Soon)

9. Power & Dimensions

🟢 Operating Voltage: 12V DC
🟢 Current Draw: < 550mA
🟢 Dimensions: 68.7 × 194.7 × 28.3mm (W × H × D)

Why Choose the ProMA Series?

✅ Rugged & Weatherproof – Ideal for outdoor & high-security environments
✅ Multiple Authentication Methods – Face, Fingerprint, RFID & Palm for enhanced security
✅ Ultra-Fast Recognition – Accurate & rapid identification in all conditions
✅ Advanced Security Features – Encrypted communication, ONVIF video integration & cybersecurity compliance
