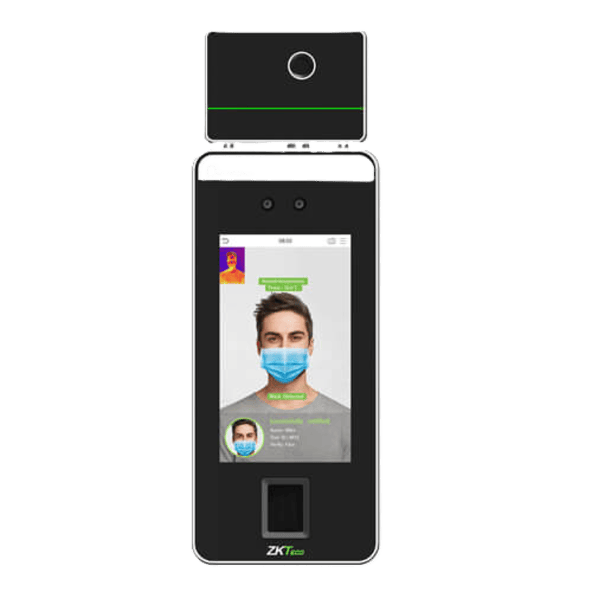

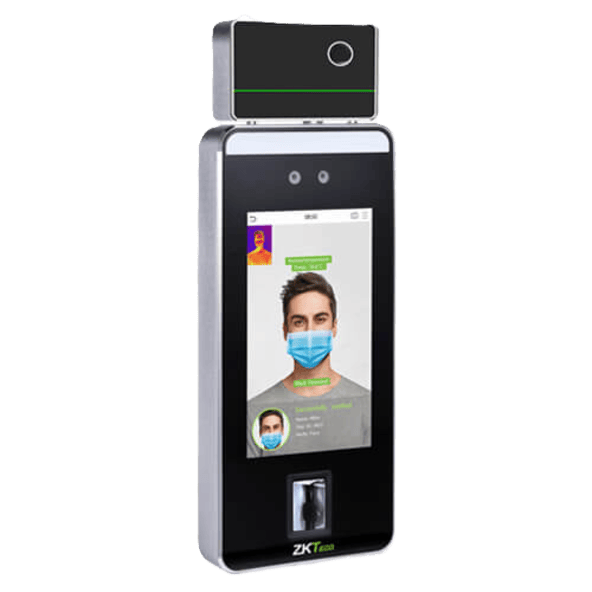

SpeedFace-V5L Series – Intelligent Multi-Biometric Access Control Terminal

1. Overview

🟢 Advanced facial recognition with AI-driven anti-spoofing technology
🟢 Supports fingerprint, facial, and palm recognition for high security
🟢 Touchless verification technology – identifies users even with masks
🟢 QR code scanning for secure mobile-based access
🟢 Ultra-fast palm recognition (0.35 sec) with Palm Shape, Palm Print & Palm Vein detection

2. Display & Hardware

🟢 5-inch ISP Color LCD Screen (720×1280 resolution)
🟢 WDR Low-Light Camera (2MP) for enhanced facial recognition
🟢 1GHz Dual-Core CPU with 1GB RAM & 8GB ROM for efficient processing
🟢 Integrated LED fill light & virtual keypad (12 Keys) for easy use

3. Capacity & Storage

🟢 Face Capacity: 6,000 (Standard) / 10,000 (Optional)
🟢 Fingerprint Capacity: 6,000 (Standard) / 10,000 (Optional)
🟢 Palm Template Capacity: 3,000
🟢 Card Capacity: 10,000
🟢 Transaction Storage: 200,000 (Optional for Capacity Expansion)

4. Biometric Performance

🟢 Fingerprint Verification Speed: ≤ 0.3 sec
🟢 Facial Recognition Speed: ≤ 1 sec
🟢 Palm Recognition Speed: ≤ 0.35 sec
🟢 Recognition Distance:

• Facial: 1cm - 100cm
• Palm: Up to 50cm
  🟢 False Acceptance Rate (FAR):
• Facial ≤ 0.01%
• Fingerprint ≤ 0.0001%
• Palm ≤ 0.05%
  🟢 False Rejection Rate (FRR):
• Facial ≤ 0.02%
• Fingerprint ≤ 0.01%
• Palm ≤ 1.8%

5. Biometric Algorithms

🟢 Facial Recognition: ZKFace 3.5
🟢 Palm Recognition: ZKPalm V12.0
🟢 Fingerprint Algorithm: ZKFingerprint V10.0

6. QR Code & Card Support

🟢 QR Code Compatibility: Dynamic & Static QR codes, PDF417, Data Matrix, Aztec
🟢 Card Type:

• ID Card @ 125 kHz (Optional)
• IC Card @ 13.56 MHz (Optional)
• CEPAS (Optional)

7. Communication & Connectivity

🟢 TCP/IP for seamless integration
🟢 Wiegand Input & Output for third-party system compatibility
🟢 RS485 for flexible device connection
🟢 Auxiliary Input & Output for emergency triggers

8. Access Control & Security

🟢 Interfaces for electric locks, door sensors, alarms, exit buttons & doorbells
🟢 Anti-passback function for enhanced security
🟢 Tamper switch alarm for unauthorized access attempts

9. Power & Environmental Conditions

🟢 Power Supply: DC 12V / 3A
🟢 Operating Temperature: -10°C to 45°C
🟢 Operating Humidity: 10% - 90% RH

10. Dimensions & Installation

🟢 Compact & sleek design: 91.93mm × 202.93mm × 21.5mm
🟢 Wall-mount installation (compatible with Asian Gang-box / Single Gang-box)

11. Supported Software & Certifications

🟢 Software: ZKBio CVAccess / ZKBioTalk
🟢 Mobile Apps: ZKBio Zlink / ZSmart
🟢 Cloud Service: ZKBio Zlink
🟢 Certifications: ISO14001, ISO9001, CE, FCC

Why Choose SpeedFace-V5L?

✅ High-speed, multi-biometric authentication with enhanced security
✅ AI-powered anti-spoofing technology to detect fake photos & videos
✅ Touchless verification for hygienic & convenient access control
✅ Supports facial recognition even while wearing masks
✅ Seamless integration with access control & time attendance systems
