F16

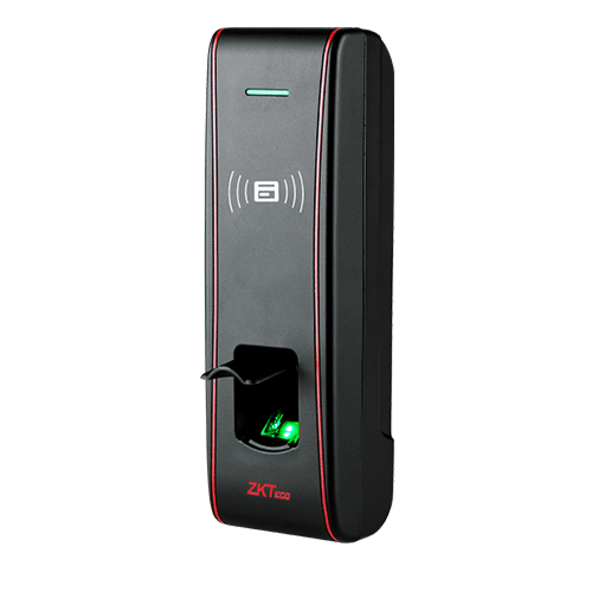

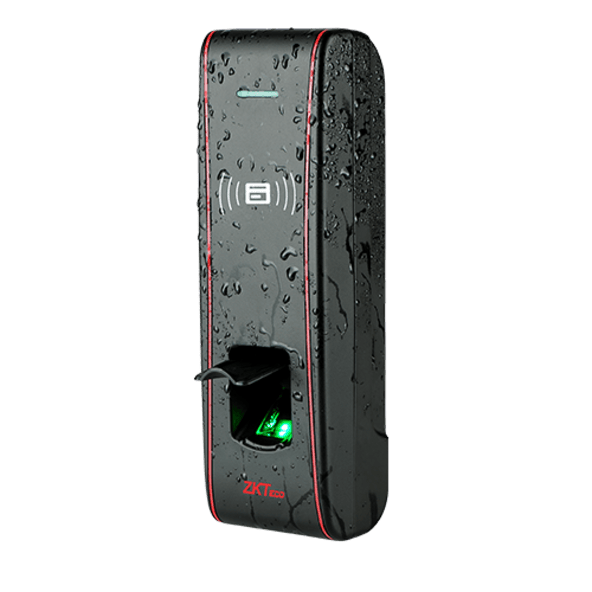

F16 is a fingerprint access control terminal with an integrated proximity reader (EM). It is IP65 rated which enables it to be resistant from water, dust and other outside damages. It can be installed easily on your network having Ethernet serial port. Weigand-OUT port allows connection of reader to ZK or any 3rd party access control panels panel. Using Weigand-In port, you can connect to any card readers for authentication at both entrance and exit. The PULL firmware and ZKBio CVAccess are the standard configurations which make F16 more versatile and powerful. Users can be registered on the device by the Management Card or through connecting with ZKBio CVAccess software by TCP/IP.
F16 – Fingerprint & RFID Access Control Terminal
1. Overview
🟢 Fingerprint & RFID authentication for secure access control
🟢 IP65-rated for water, dust, and damage resistance
🟢 Supports both standalone & network modes
🟢 Wiegand input & output for seamless third-party integration
🟢 Can be managed via ZKBio CVAccess software
2. Biometric & Card Capacity
🟢 Fingerprint Capacity: 3,000 (Optional)
🟢 Card Capacity: 30,000 (EM standard, Mifare optional)
🟢 Transaction Storage: 100,000 logs
3. Authentication & Security
🟢 Multiple authentication methods: Fingerprint & Card
🟢 Wiegand input & output for dual authentication at entry & exit
🟢 Integrated proximity card reader (EM Standard, Mifare Optional)
4. Hardware & Performance
🟢 ZK Optical Fingerprint Sensor for accurate recognition
🟢 ZKFinger V10.0 Algorithm for reliable fingerprint matching
🟢 Durable design with IP65-rated protection
5. Communication & Connectivity
🟢 Supports TCP/IP & RS485 for easy networking
🟢 Wiegand In & Out for third-party access control panels
6. Power & Environmental Conditions
🟢 Power Supply: 12V DC 3A
🟢 Operating Temperature: 0°C - 45°C
🟢 Ingress Protection: IP65 for outdoor durability
7. Dimensions & Installation
🟢 Compact & rugged design: 62.5mm × 185mm × 41.5mm (W×H×D)
🟢 Easy installation on walls & access points
8. Supported Software
🟢 Software: ZKBio CVAccess
Why Choose F16?
✅ Robust IP65-rated protection for outdoor & indoor use
✅ Accurate fingerprint & card-based authentication
✅ Seamless integration with third-party access control panels
✅ Ideal for high-security areas with multiple access options
📞 Contact us today for more details!
