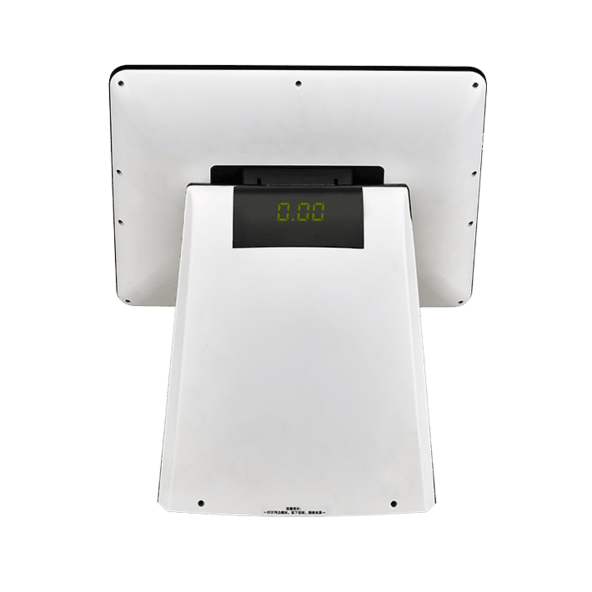

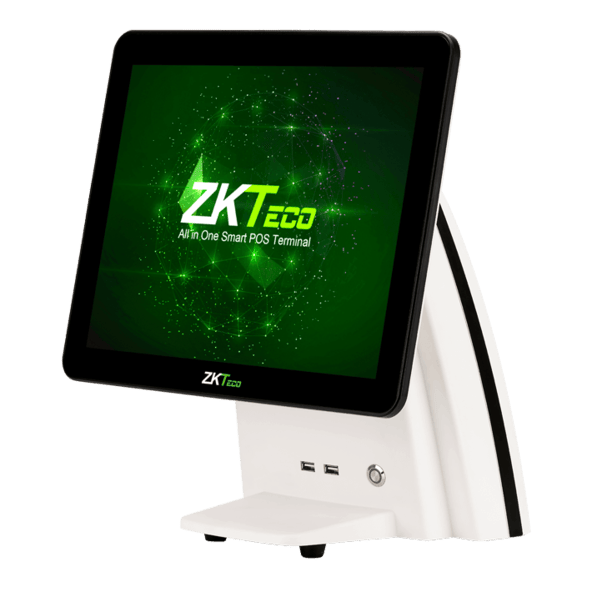

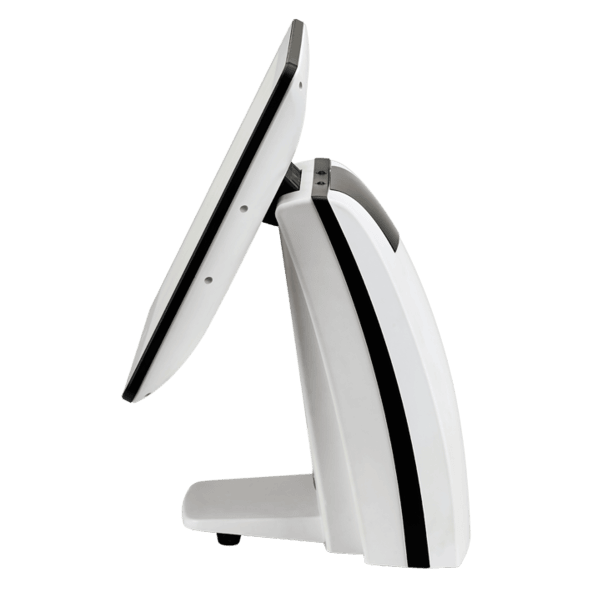

ZK1530 – High-Performance POS Terminal with Multi-Peripheral Support

1. Overview

🟢 Powerful POS System with Intel® Core™ i3-4010U Processor
🟢 15” Capacitive Touchscreen with LED Backlight
🟢 Multiple Connectivity Ports for Maximum Expandability
🟢 Supports Windows & Linux Operating Systems
🟢 Ideal for Retail, Hospitality, and Business Applications

2. System Specifications

🟢 Processor:

• Intel® Core™ i3-4010U @ 1.7GHz

🟢 Memory & Storage:

• Standard Memory: 2GB DDR3L 1333MHz
• Expandable Memory: Up to 8GB
• Standard Storage: 32GB SSD
• Optional Storage: Supports 1 × 2.5” HDD & 2.5” SSD

🟢 Operating System Support:

• Windows 7, 8, 10 IoT Enterprise, POS Ready 7, Linux

🟢 Audio:

• Realtek ALC662 Audio Codec

3. Display & Touch Features

🟢 Main Display:

• 15” TFT LCD, LED Backlight
• Resolution: 1024×768
• Touchscreen: Projected Capacitive Touch

🟢 Customer Display Options:

• Standard: LED (8C Digital Tube)
• Optional: 15” TFT LCD or 20 Columns × 2 Lines VFD Display

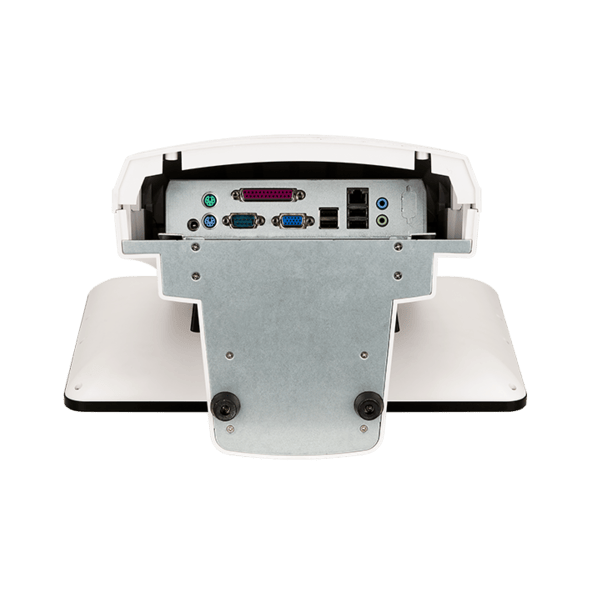

4. External I/O Ports

🟢 USB Ports: 4 × USB 2.0, 2 × USB 3.0
🟢 Serial Ports (RS232): 3
🟢 LAN: 1 × RJ45
🟢 VGA: 1 × DB-15
🟢 HDMI: 1
🟢 Audio: 1 × Line-out

5. Power & Environmental Conditions

🟢 Power Supply:

• 12V DC / 5A Adapter

🟢 Operating Conditions:

• Temperature: 0℃ ~ 35℃ (20% - 80% Humidity)
• Storage Temperature: -20℃ ~ 55℃ (20% - 80% Humidity)

6. Physical Dimensions & Weight

🟢 Unit Dimensions (W×H×D): 358 × 390 × 236 mm
🟢 Packing Dimensions: 460 × 490 × 315 mm
🟢 Net Weight: 5.8Kg
🟢 Gross Weight: 6.9Kg

🟢 Color Options: White

7. Options & Peripherals

🟢 Customer Display:

• Optional: 15” TFT LCD or 20×2 Lines VFD Display

🟢 Card & Biometric Readers:

• Optional: 3-Track MSR (Magnetic Stripe Reader)

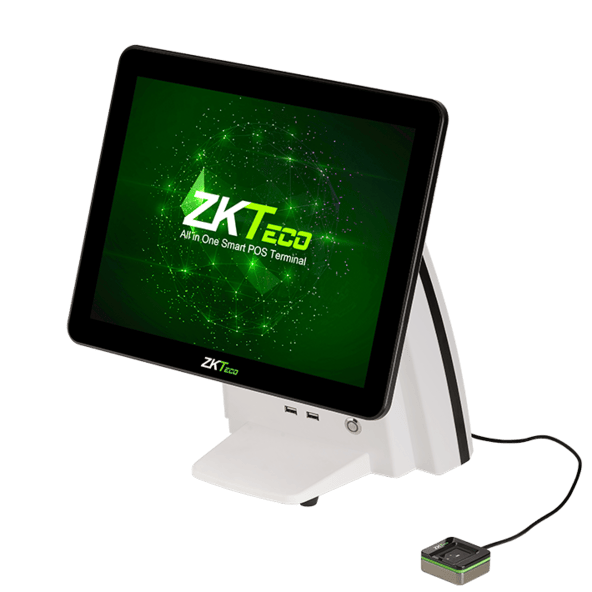

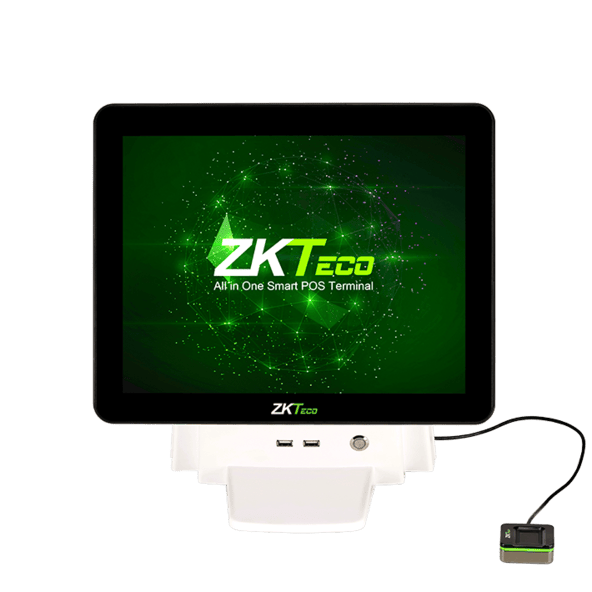

• Optional: USB Fingerprint Reader (SLK20R)

8. Certifications & Compliance

✅ Certified for CE, FCC Standards

Why Choose ZK1530?

✅ Powerful Intel® Core™ i3 Processor for Smooth Operation
✅ 15” Capacitive Touchscreen for a Modern User Experience
✅ Multiple Connectivity Ports for Flexible Integration
✅ Supports Windows & Linux for Broad Compatibility
✅ Multiple Peripherals for Enhanced Functionality
✅ Certified with CE & FCC for Quality Assurance

📞 Contact us today to see how ZK1530 can boost your business efficiency! 🚀
