ZKBio730 – High-Performance Biometric POS Terminal

1. Overview

🟢 Powerful POS Terminal with Advanced Biometric & Barcode Scanning Options
🟢 Equipped with Intel® Core® i3 Processor for fast and smooth operation
🟢 Supports multiple OS including Windows 7, 8, 10, 11
🟢 Ideal for retail, hospitality, and biometric authentication systems
🟢 Multiple display configurations for enhanced customer interaction

2. System Specifications

🟢 Processor:

• Intel® Core® i3-6100U @ 2.40GHz

🟢 Memory & Storage:

• 4GB RAM Standard, Expandable up to 8GB (DDR3 & DDR4)
• 64GB SSD Standard, Expandable up to 512GB
• Optional: External Memory Slots (M.2 SATA SSD 120GB & HDD 500GB)

🟢 Operating System Support:

• Windows 7, 8, 10, 11

3. Display & Touch Features

🟢 Main Display:

• 15” HD TFT LCD, 1024×768, Capacitive Touch Screen

🟢 Second Display Configurations:

• Configuration 1: LED (8C Digital Tube)
• Configuration 2: VFD (2 × 20 lines)
• Configuration 3: 9.7” LCD HD, 1024×768
• Configuration 4: 15” LCD HD, 1024×768

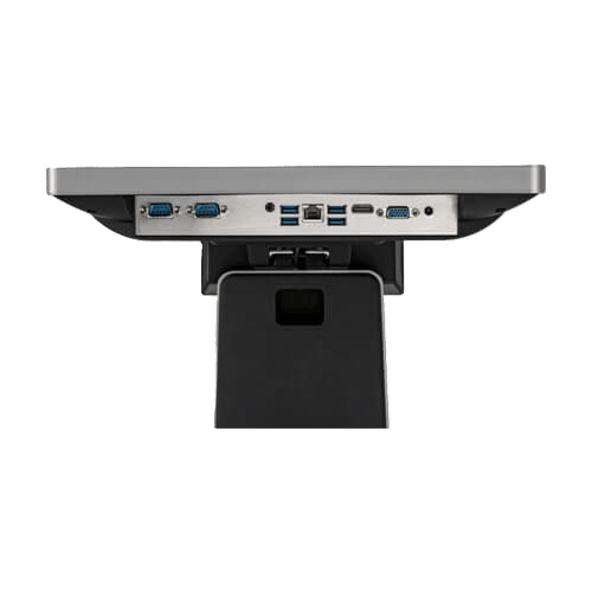

4. External I/O Ports

🟢 USB Ports: 4 × USB 3.0, 2 × USB 2.0
🟢 LAN: 1 × RJ45
🟢 Serial Ports (COM): 2
🟢 VGA: 1
🟢 HDMI: 1
🟢 Audio: 1 × Audio Jack
🟢 Microphone Input: 1 × MIC-IN
🟢 Power Port: 1

5. Power & Wireless Connectivity

🟢 Power Supply:

• DC 12V / 5A

🟢 WiFi:

• Optional: Single-band 2.4GHz or Dual-band 2.4GHz/5GHz

🟢 Bluetooth: Not Supported

6. Physical & Environmental Conditions

🟢 Material: Aluminum Alloys, ABS
🟢 Color Options: Black & Gray, Optional: White
🟢 Operating Temperature: 0°C ~ 40°C (20% - 80% Humidity)
🟢 Storage Temperature: -15°C ~ 60°C (20% - 80% Humidity)

🟢 Dimensions & Weight:

• Main Unit: 346 × 190 × 402 mm
• Packing Dimensions: 405 × 300 × 450 mm
• Net Weight:
  • Configurations 1 & 2: 5.4Kg
  • Configuration 3: 6.3Kg
  • Configuration 4: 7.8Kg
• Gross Weight:
  • Configurations 1 & 2: 7Kg
  • Configuration 3: 7.9Kg
  • Configuration 4: 9.3Kg

🟢 Certifications: ISO9001, CE, FCC, RoHS

7. Options & Peripherals

🟢Biometric & Card Readers:

• Optional: Built-in Fingerprint Module
• Optional: Built-in RFID Reader

🟢Barcode & MSR:

• Optional: Built-in 2D Barcode Scanning Module
• Optional: Built-in Magnetic Stripe Reader (MSR)

Why Choose ZKBio730?

✅ High-performance Intel® Core® i3 processor for efficient POS operations
✅ Multiple second display configurations to fit diverse business needs
✅ Expandable memory & storage options for maximum flexibility
✅ Built-in biometric authentication & barcode scanning options for secure transactions
✅ Certified with ISO9001, CE, FCC, RoHS for international quality assurance

📞 Contact us today to learn how ZKBio730 can enhance your point-of-sale experience! 🚀
