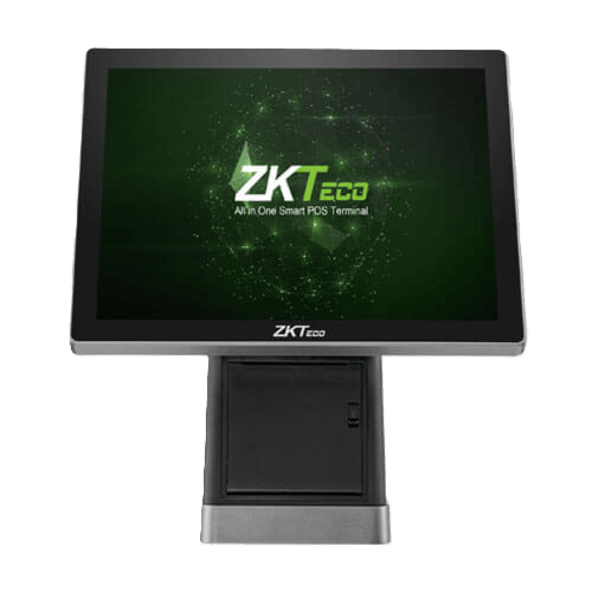

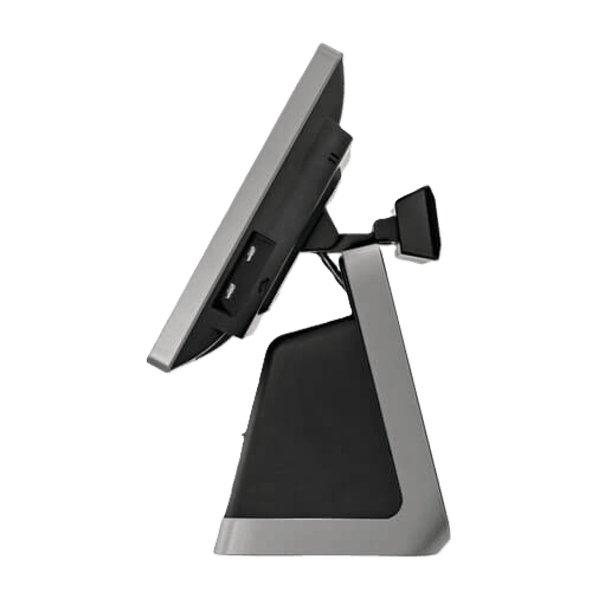

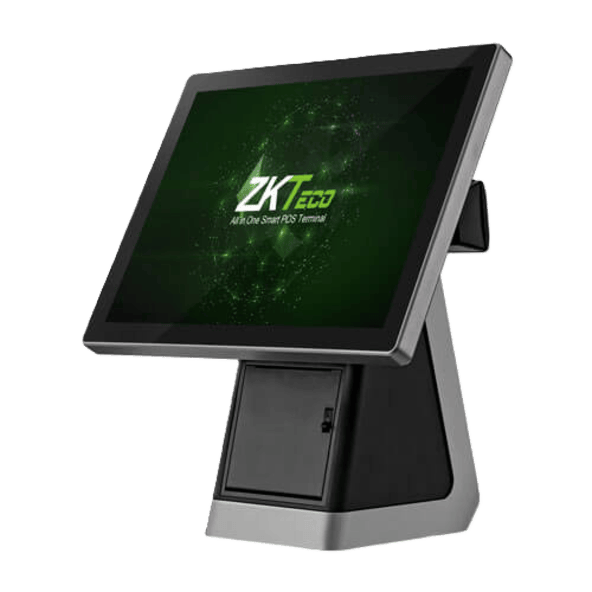

ZKBio750P – High-Performance POS Terminal with Built-in Printer & Biometric Capabilities

1. Overview

🟢 Next-Generation POS Terminal with Integrated Thermal Printing
🟢 Powered by Intel® Core® i5-6200U @ 2.30GHz for Enhanced Performance
🟢 Supports Multiple OS including Windows 7, 8, 10, 11
🟢 Multiple Display Configurations for Enhanced User Experience
🟢 Ideal for Retail, Hospitality, and Secure Transaction Systems

2. System Specifications

🟢 Processor:

• Intel® Core® i5-6200U @ 2.30GHz

🟢 Memory & Storage:

• Standard: 4GB RAM (DDR3 & DDR4)
• Expandable: Up to 8GB RAM
• Standard Storage: 64GB SSD
• Expandable Storage: Up to 512GB SSD
• Optional External Storage: M.2 SATA SSD 120GB & HDD 500GB

🟢 Operating System Support:

• Compatible with: Windows 7, 8, 10, 11

3. Display & Touch Features

🟢 Main Display:

• 15” HD TFT LCD, 1024×768, Capacitive Touch Screen

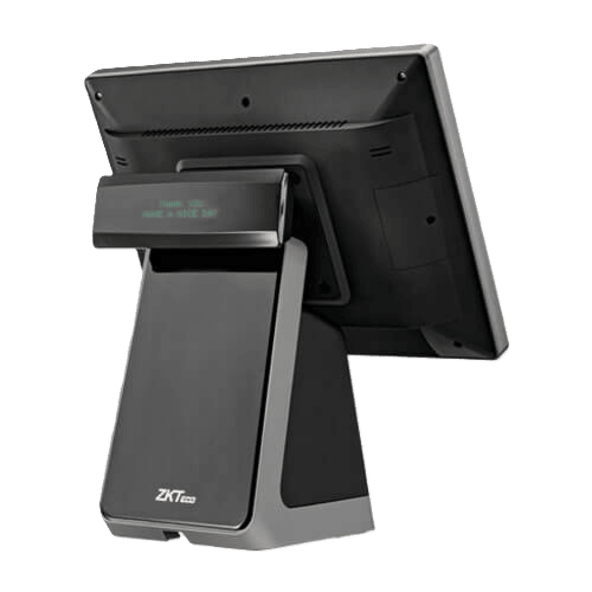

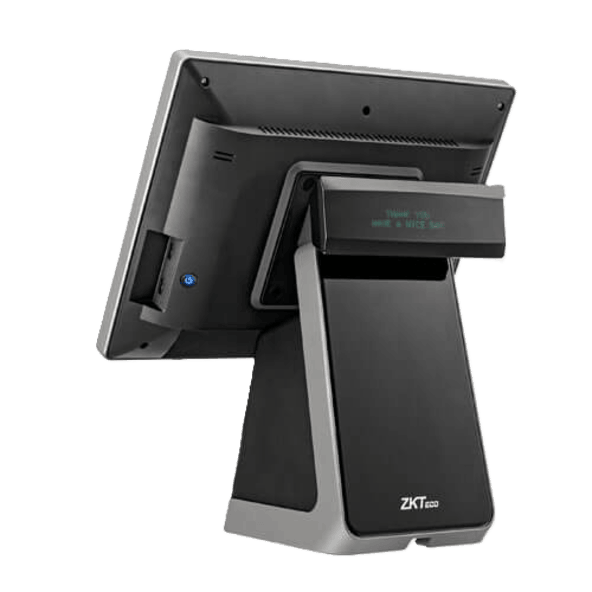

🟢 Second Display Configurations:

• Configuration 1: LED (8C Digital Tube)

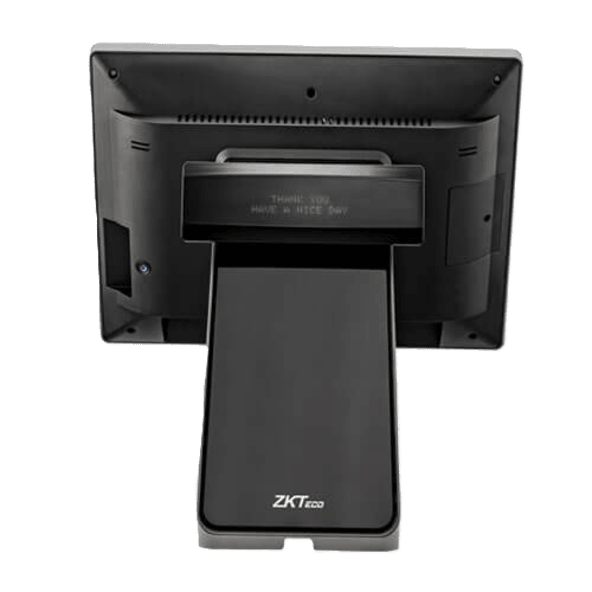

• Configuration 2: VFD (2 × 20 lines)
• Configuration 3: 9.7” LCD HD, 1024×768
• Configuration 4: 15” LCD HD, 1024×768

4. Built-in Printer

🟢 Standard: 80mm Thermal Printer
🟢 Optional: 58mm Thermal Printer

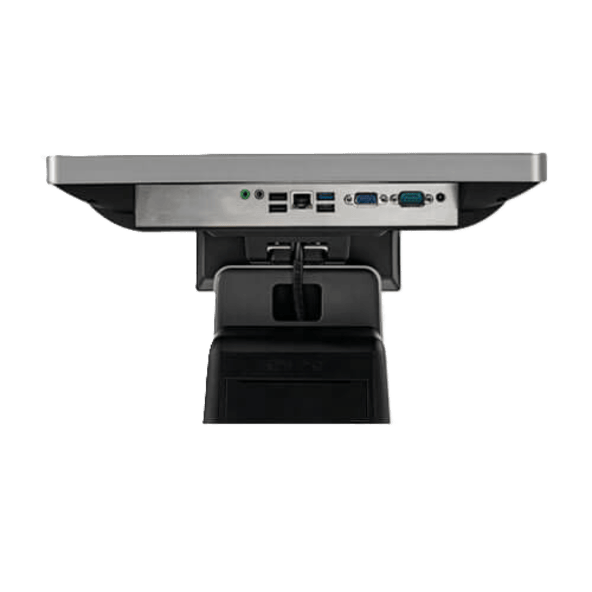

5. External I/O Ports

🟢 USB Ports: 4 × USB 3.0, 2 × USB 2.0
🟢 LAN: 1 × RJ45
🟢 Serial Ports (COM): 2
🟢 VGA: 1
🟢 HDMI: 1
🟢 Audio: 1 × Audio Jack
🟢 Microphone Input: 1 × MIC-IN
🟢 Power Port: 1

6. Power & Wireless Connectivity

🟢 Power Supply:

• DC 12V / 5A

🟢 WiFi:

• Optional: Single-band 2.4GHz or Dual-band 2.4GHz/5GHz

🟢 Bluetooth: Not Supported

7. Physical & Environmental Conditions

🟢 Material: Aluminum Alloys, ABS
🟢 Color Options: Black & Gray, Optional: White
🟢 Operating Temperature: 0°C ~ 40°C (20% - 80% Humidity)
🟢 Storage Temperature: -15°C ~ 60°C (20% - 80% Humidity)

🟢 Dimensions & Weight:

• Main Unit: 346 × 190 × 402 mm
• Packing Dimensions: 405 × 300 × 450 mm
• Net Weight:
  • Configurations 1 & 2: 5.9Kg
  • Configuration 3: 6.8Kg
  • Configuration 4: 8.2Kg
• Gross Weight:
  • Configurations 1 & 2: 7.5Kg
  • Configuration 3: 8.4Kg
  • Configuration 4: 9.8Kg

🟢 Certifications: ISO9001, CE, FCC, RoHS

8. Options & Peripherals

🟢 Biometric & Card Readers:

• Optional: Built-in Fingerprint Module
• Optional: Built-in RFID Reader

🟢 Barcode & MSR:

• Optional: Built-in 2D Barcode Scanning Module
• Optional: Built-in Magnetic Stripe Reader (MSR)

Why Choose ZKBio750P?

✅ Integrated High-Speed Thermal Printer for Seamless POS Functionality
✅ Powerful Intel® Core® i5-6200U for Enhanced Performance
✅ Multiple Display Configurations to Fit Various Business Needs
✅ Expandable Memory & Storage for Maximum Flexibility
✅ Built-in Biometric & Barcode Scanning for Secure Transactions
✅ Certified with ISO9001, CE, FCC, RoHS for International Standards
