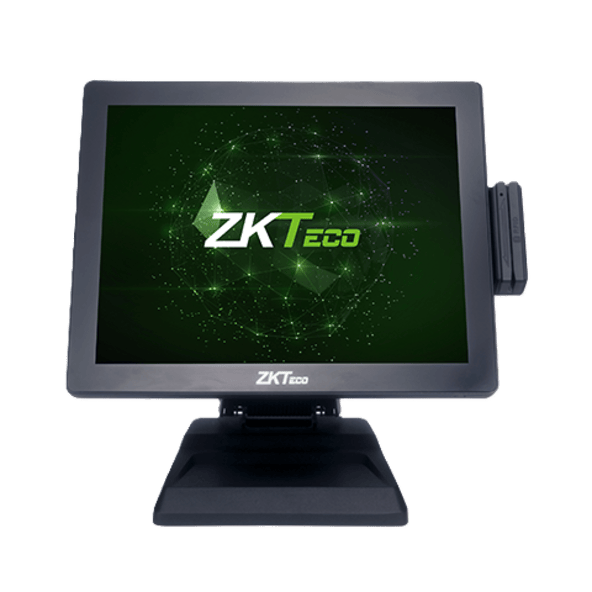

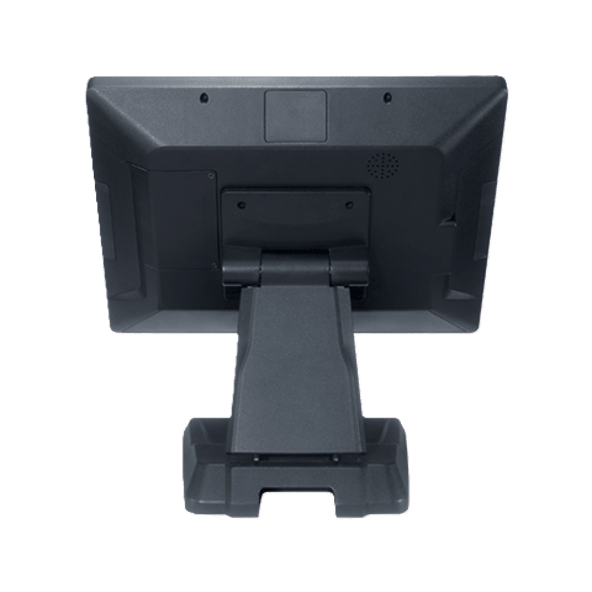

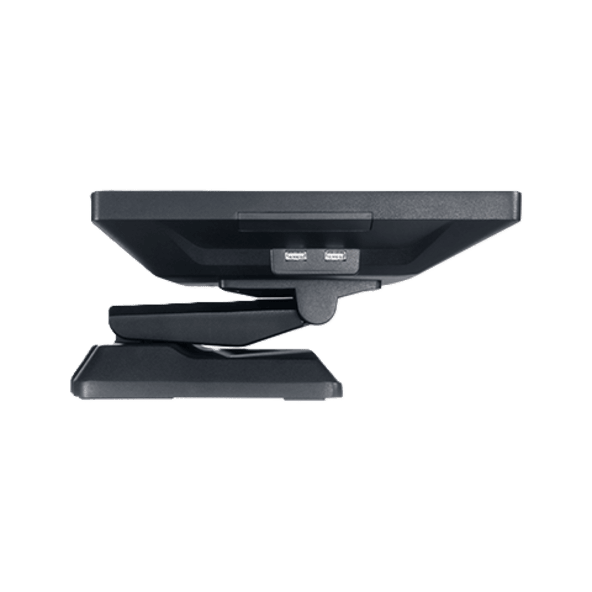

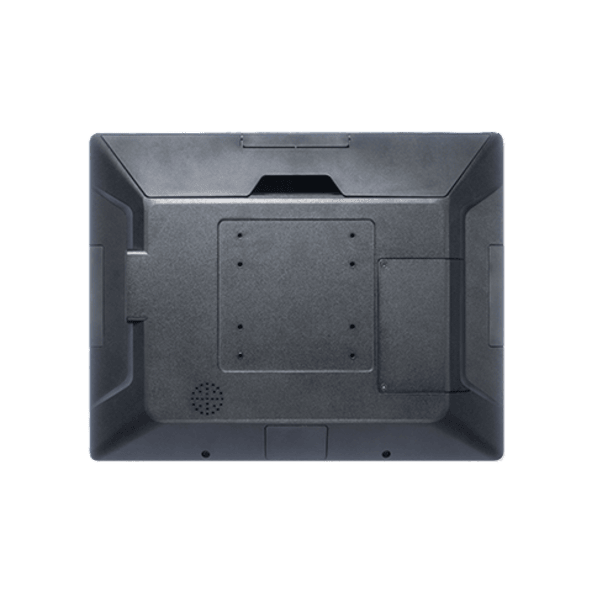

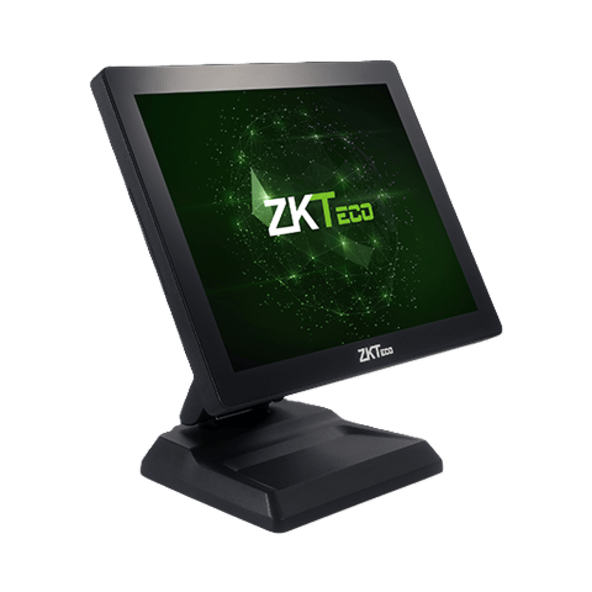

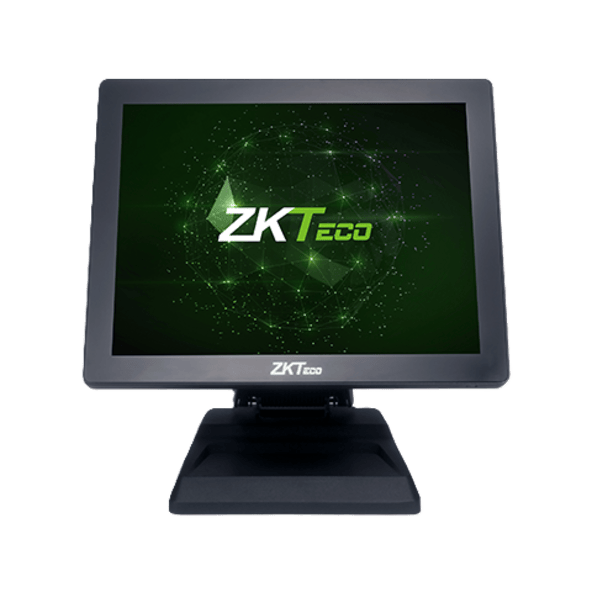

ZKBio910 – Advanced Biometric POS Terminal

1. Overview
🟢 High-Performance Biometric POS Terminal
🟢 Powered by Intel® Celeron J1900 Processor
🟢 Supports multiple OS including Windows 7, 8, 10 IoT, and Linux
🟢 Ideal for retail, point of sale, and biometric authentication systems
🟢 15” TFT LCD with optional Projected Capacitive Touch Screen

2. System Specifications
🟢 Processor:
Intel® Celeron J1900 Processor (1.99GHz)

🟢 System Memory:
4GB DDR3L 1666MHz

🟢 Storage Device:
64GB SSD (Max. 1 × 2.5” HDD / 2.5” SSD)

🟢 Operating System Support:
Windows 7, 8, 10 IoT Enterprise, POS Ready 7, Linux

🟢 Audio:
Realtek ALC662

3. Display & Touch Features
🟢 Display Type: 15” TFT LCD, LED Backlight
🟢 Resolution: 1024×768
🟢 Touchscreen Type: Projected Capacitive
🟢 Customer Display: LED (8C Digital Tube)

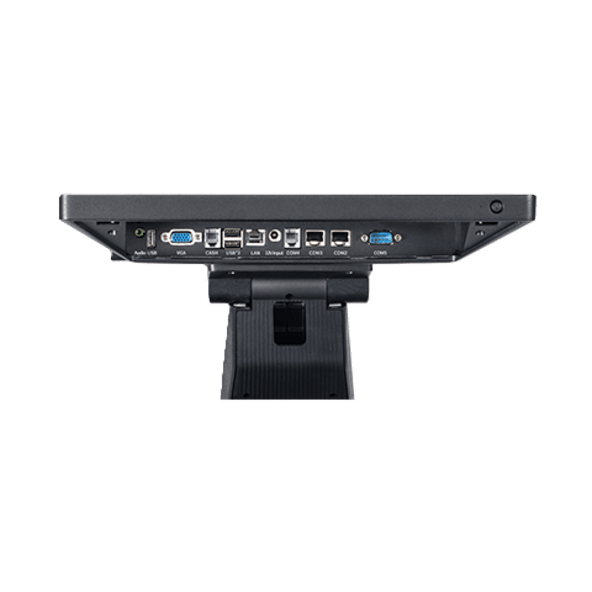

4. External I/O Ports
🟢 VGA: 1 × DB-15
🟢 USB Ports: 5 × USB 2.0, 1 × USB 3.0
🟢 Serial Ports (COM): 2
🟢 LAN: 1 × RJ45
🟢 Audio: 1 × Line-out
🟢 HDMI: 1

5. Power Specifications
🟢 Power Supply:
Adaptor: 12V DC 5A

6. Physical & Environmental Conditions
🟢 Operating Temperature: 0℃ ~ 35℃ (20% - 80% Humidity)
🟢 Storage Temperature: -20℃ ~ 55℃ (20% - 80% Humidity)
🟢 Dimensions (W × H × D): 228 × 385 × 403 mm
🟢 Certifications: CE, FCC
🟢 Material: Aluminum Alloys, ABS
🟢 Color: Black

7. Options & Peripherals

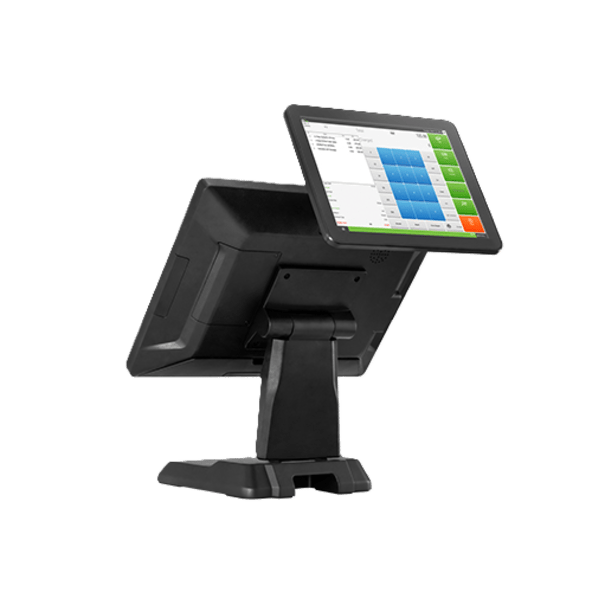

🟢 Second Display: 9.7” TFT LCD
🟢 Customer Display (VFD): 20 columns × 2 lines
🟢 Magnetic Stripe Reader (MSR): 3 Tracks
🟢 Barcode Scanner: 2D Barcode Scanner
🟢 Fingerprint Reader: USB Fingerprint Module

Why Choose ZKBio910?
✅ High-performance Intel® Celeron J1900 processor for smooth operation
✅ Durable aluminum alloys and ABS construction for longevity
✅ Customizable 15” display with optional Projected Capacitive Touch
✅ Versatile external ports for flexibility in peripherals
✅ Certified with CE & FCC for international quality standards

📞 Contact us today for more details or to explore how ZKBio910 can enhance your biometric POS system!
